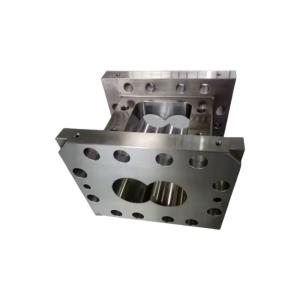

Customizable Screw Barrel for Compounding Extrusion Machine
Product Description
One of the standout features of our Extruder Side Open Screw Barrel is its automatic temperature control barrel. This innovative design allows for precise temperature control, ensuring that your extrusion process runs smoothly and efficiently. With this feature, you can easily adjust the temperature as needed to achieve the perfect results every time.
In addition to its temperature control capabilities, our Extruder Side Open Screw Barrel also features a 6D side open barrel. This unique design provides easy access for cleaning and maintenance, minimizing downtime and ensuring that your machine is always running at its best.
Features
| Product Name | Extruder Side Open Screw Barrel |  |
| Hardness | 58-60HRC |
| Brand Name | Nanxiang Machinery |
| Surface Treatment | Polishing/Sand Blasting |
| Place of Origin | Sichuan , China |
| Warranty | 6 months |
| Application | Extrusion Machine |
| Barrel Type | Side Feed Screw Barrel, Automatic Temperature Control Barrel, Side Feeding Barrel |
Materials Barrel
Barrel Body
There are three kinds of material used for barrel’s main body, they are HB01, HB02,HC01. And HB01 is popular in domestic barrel application.
Barrel Liner
We choose different kinds of materials for barrel liner according to different application.
Normally, there are two main kinds of materials, one is HIP powder tool steel, and the other is domestic steel.
Standard Barrel Parameter Table
| Standard Barrel Parameter Table (selection table) |
| Model | Size(mm)
W.H.L | Hole Diameter (mm) | Center Distance (mm) |
| NX-20 | 115.105.132 | Φ23 | 18.4 |
| NX-30 | 135.115.120 | Φ30.6 | 26 |
| NX-35 | 140.120.140 | Φ36 | 30 |
| NX-36 | 160.140.150 | Φ36 | 30 |
| NX-40 | 175.145.160 | Φ41.6 | 34.5 |
| NX-50 | 190.150.190 | Φ51 | 42 |
| NX-52 | 200.155.210 | Φ52 | 43 |
| NX-53 | 210.160.220 | Φ53.3 | 48 |
| NX-58 | 220.175.240 | Φ58 | 48 |
| NX-60 | 210.170.240 | Φ60 | 52 |
| NX-65 | 210.170.240 | Φ63 | 52 |
| NX-75 | 260.200.290 | Φ71.8 | 60 |
| NX-85 | 280.215.320 | Φ81.9 | 67.8 |
| NX-92 | 310.240.360 | Φ92 | 78 |
| NX-95 | 310.240.360 | Φ94 | 78 |
| NX-110 | 330.240.420 | Φ109 | 91.5 |
| NX-125 | 390.290.500 | Φ125 | 98 |
| NX-135 | 370.300.410 | Φ134 | 110 |
Barrel
| Production name: | Screw barrel | Brand Name: | Nanxiang |
| Model Number | Maris 219 | Material: | 45#body+SAM26 liner |
| Place of Origin | China | Application | Pelleting twin screw extruder |
| Production | forging+CNC | Classify | Open barrel and closed barrel |
Technical Parameters
| Packing | Wooden Box Packing |
| Wear resistant | High |
| Technics | Machining |
| Application | |
| Hardness | HRC 58-62 |
| Treatment | Polishing/Sand Blast |
| Service Provided | Video Technical Support |
| Temperature resistant | High |
| Place of Origin | China |
| Condition | New |
| Product Name | Extruder Side Open Screw Barrel |
| Product Attributes | Side Feed Port Barrel, Rear Exhausting Barrel, Side Open Barrel |
Support twin-screw extruder brand
| W&P: ZSK-MC | Berstorff: ZE |
| Leistritz: ZSE-MICRO | Theysohn: TSK |
| Maris:TM-W | APV: MP65 |
| JSW: TEX | SM: TEK-HS |
| Feddem: FED-MTS | Fessia Macross: NRII |
| TOSHIBA: TEM | USEON: TDS |
| Labtech: LTE | SHIZHOU: MTE |
Service Network Assurance Barrel
| 24-hour Hotline | Pre-sales Consultation | After-sales Services |
| No matter when and where to call we can find our service to you. | Whether you have any question
can be solved through online
communication. Welcome your consultation. | Having any questions about the products, please contact with us and we will help you deal with them the first time to your satisfaction. |
Packing&Delivery
Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.
Delivery Details: 20-60days after order.
Packing
According to your order quantities and products sizes to choose wooden boxes or cartons to pack:
a. Rust-proof oil processing,
b. Oiled paper packages,
c. Bubble wrap package,
d. Special foam packaging,
e. Packing,
f. Sealing.
Customer Trust
Certificate
Why choose us?
Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.
Q: How long will your product last?
A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.
Q: Are your quotations all FOB?
A: Yes, all our quotations are FOB (Free on Board).
Q: Can I get a one-year warranty for free?
A: Our standard warranty is not free, but we have confidence in the quality of our products. If you require a warranty, it will be available for an additional cost.
Q: How is your after-sale service?
A: We are committed to providing timely support. If you encounter any issues with our products, you will receive our assistance promptly. We strive to ensure you receive the best service possible.
